Ladders

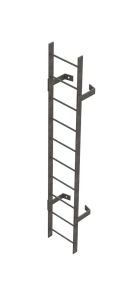

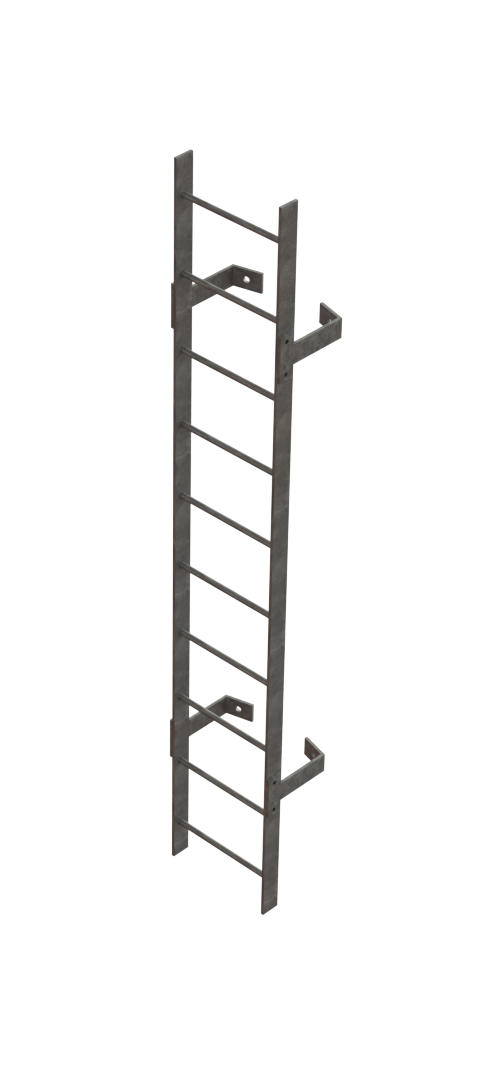

Fabricated Ladders

Access ladders are manufactured to compliance with BS4211 and fabricated from high grade mild steel and hot dip galvanised to BS EN ISO1461.

Fully stainless steel 304 or 316 access ladders are also available to meet your project specification.

Compliant with BS EN14396

Designed inline with WRc ‘Sewers for Adoption Specifications’ 7th Edition

Product Details

65mm x 10mm stringer

400mm width

20mm diameter rungs @ 250mm centres

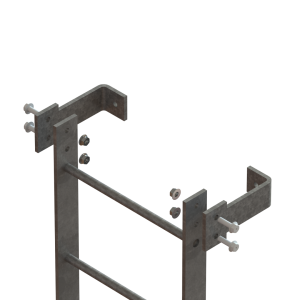

Flat wall chamber bracket @ 90°

Angled wall bracket to suit chamber diameter of 1500mm, 2500mm & 3000mm

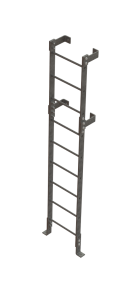

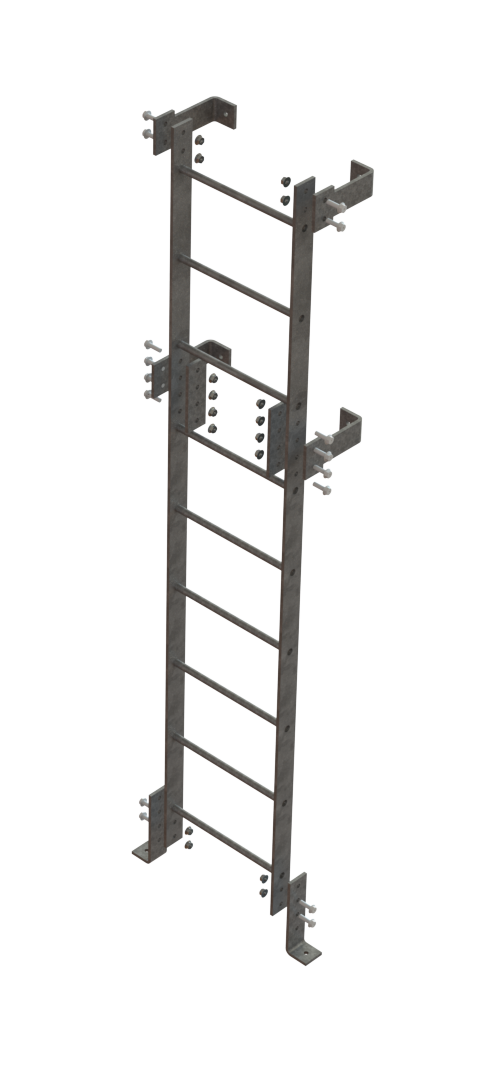

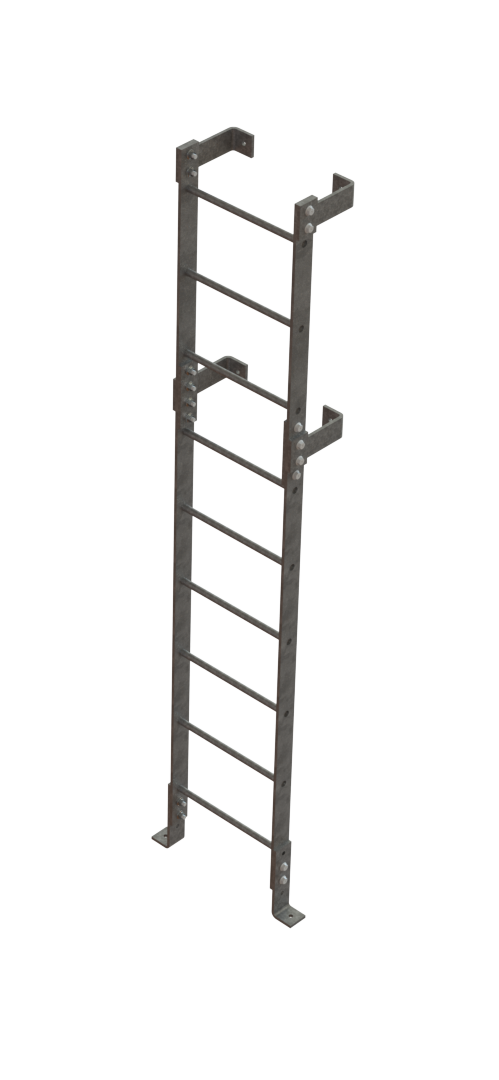

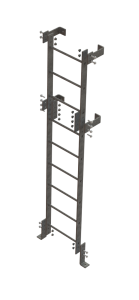

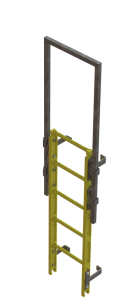

Modular Ladder System

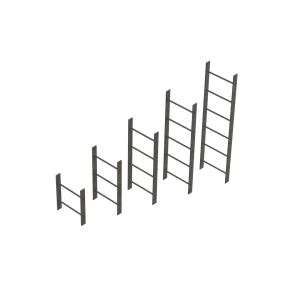

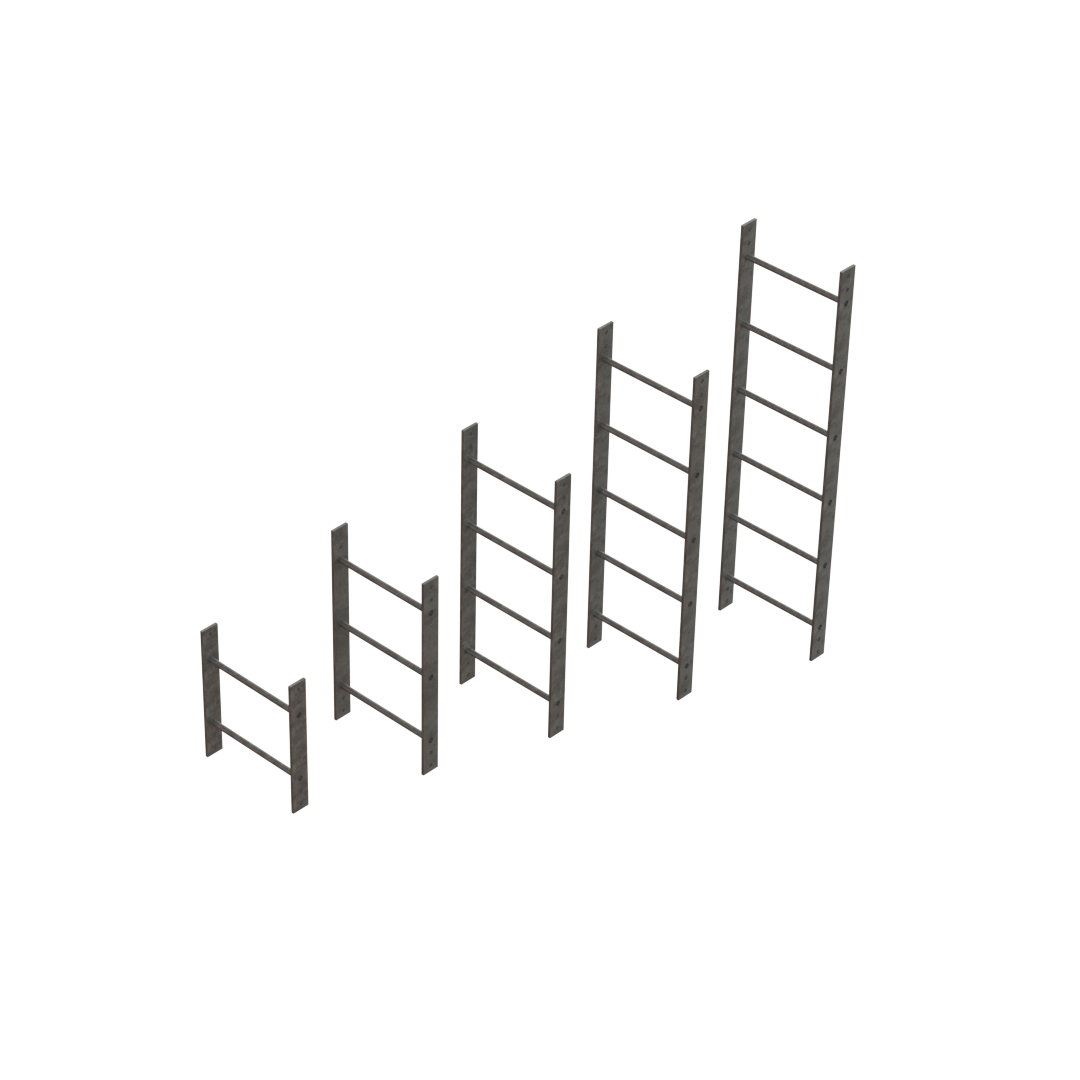

Modular Ladder Components

500mm Section

750mm Section

1000mm Section

1250mm Section

1500mm Section

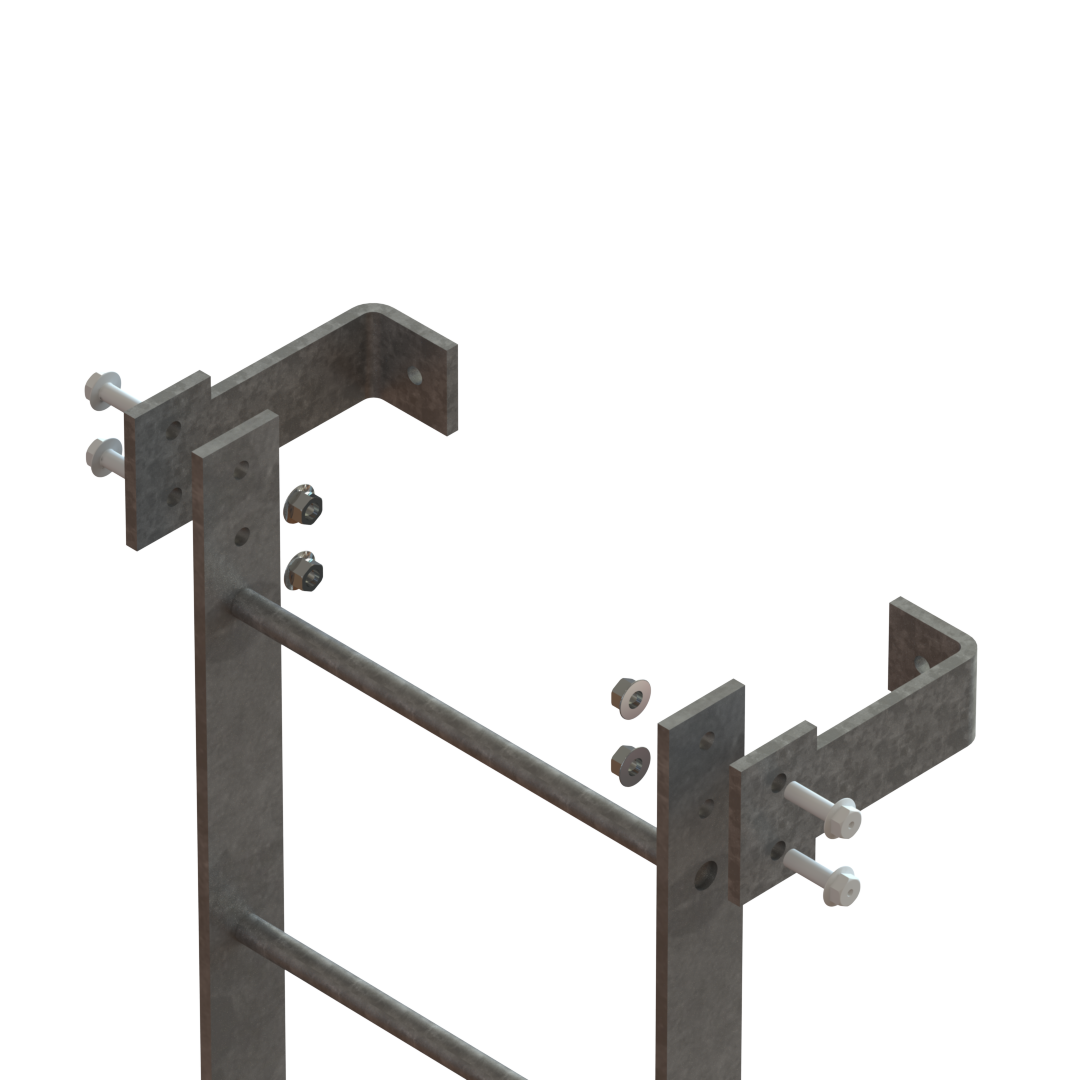

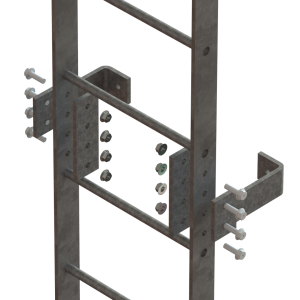

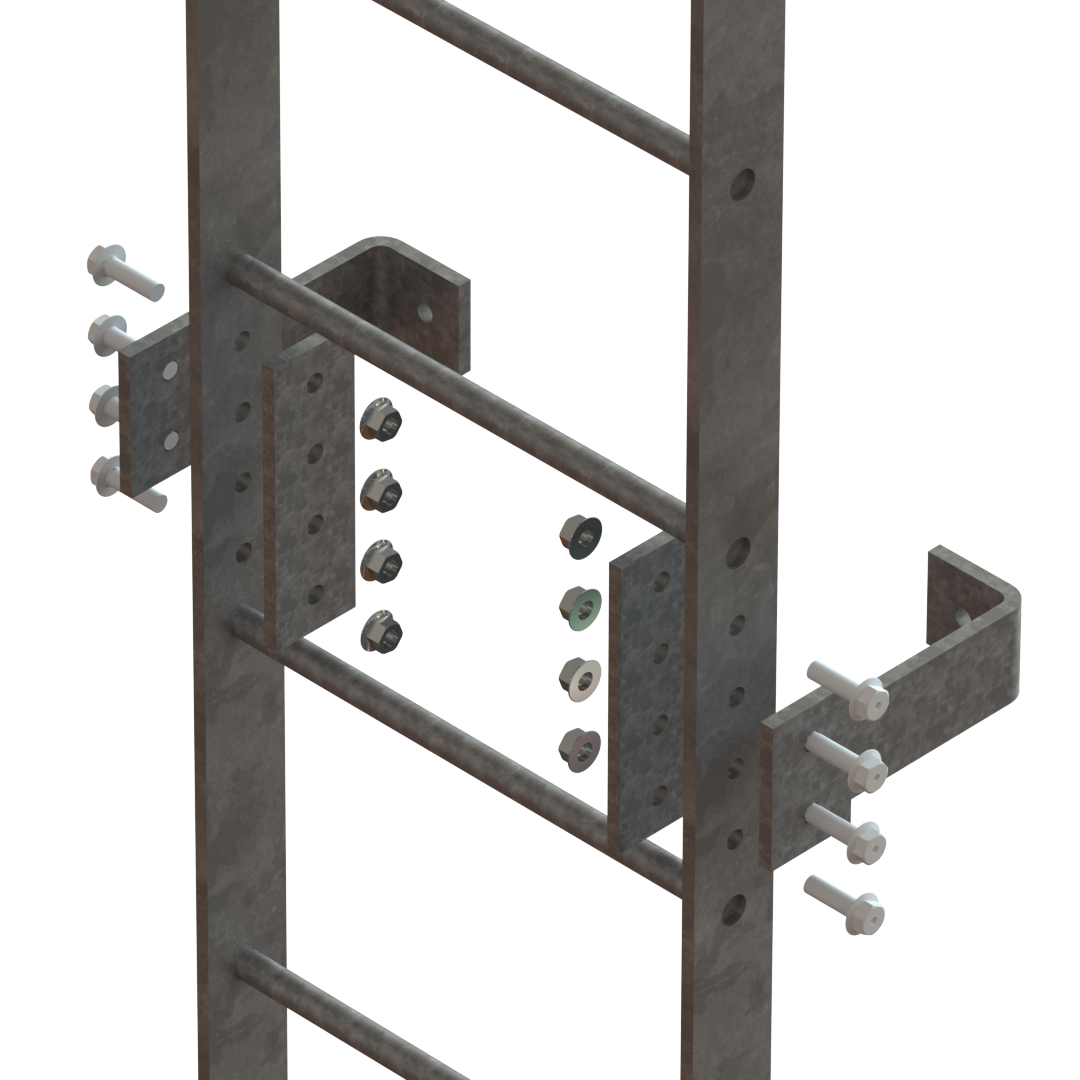

Ladder connection plate with flat wall bracket

Ladder connection plate with wall bracket to suit chamber diameter of 1500mm, 2500mm & 3000mm

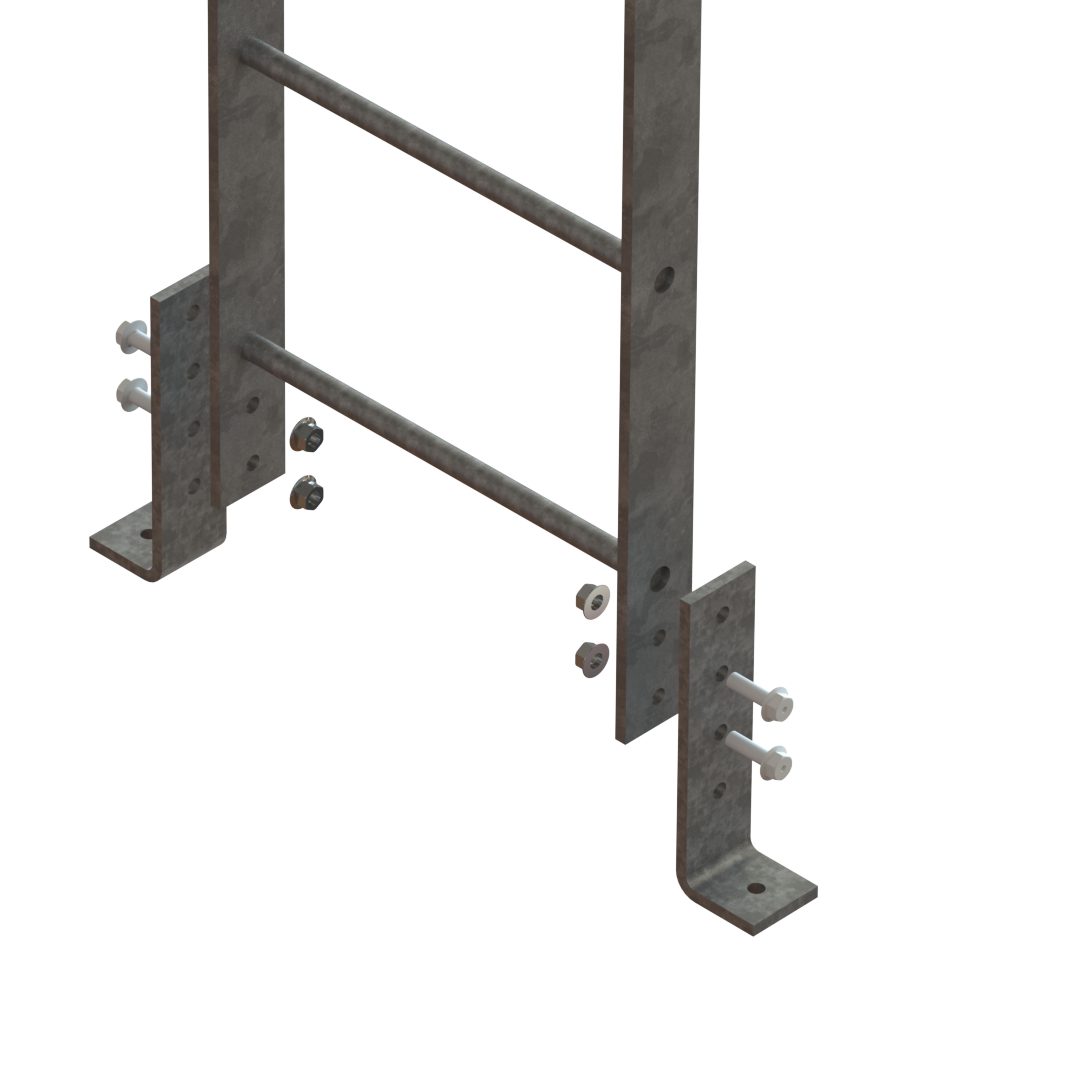

Adjustable Ladder Feet



Ladder Accessories
